Avocet Premium Quality Letterplate - Affinity Range Letterbox – uPVC & Composite Doors

NEW affinity letter plate with contoured edges to complement the Affinity suited range.

• 12 inch version to take full A4 size mail
• To suit 38mm - 80mm door thickness
• External flap opens up to 180 degrees
• Fully sprung loaded
• Finger slot for easy opening

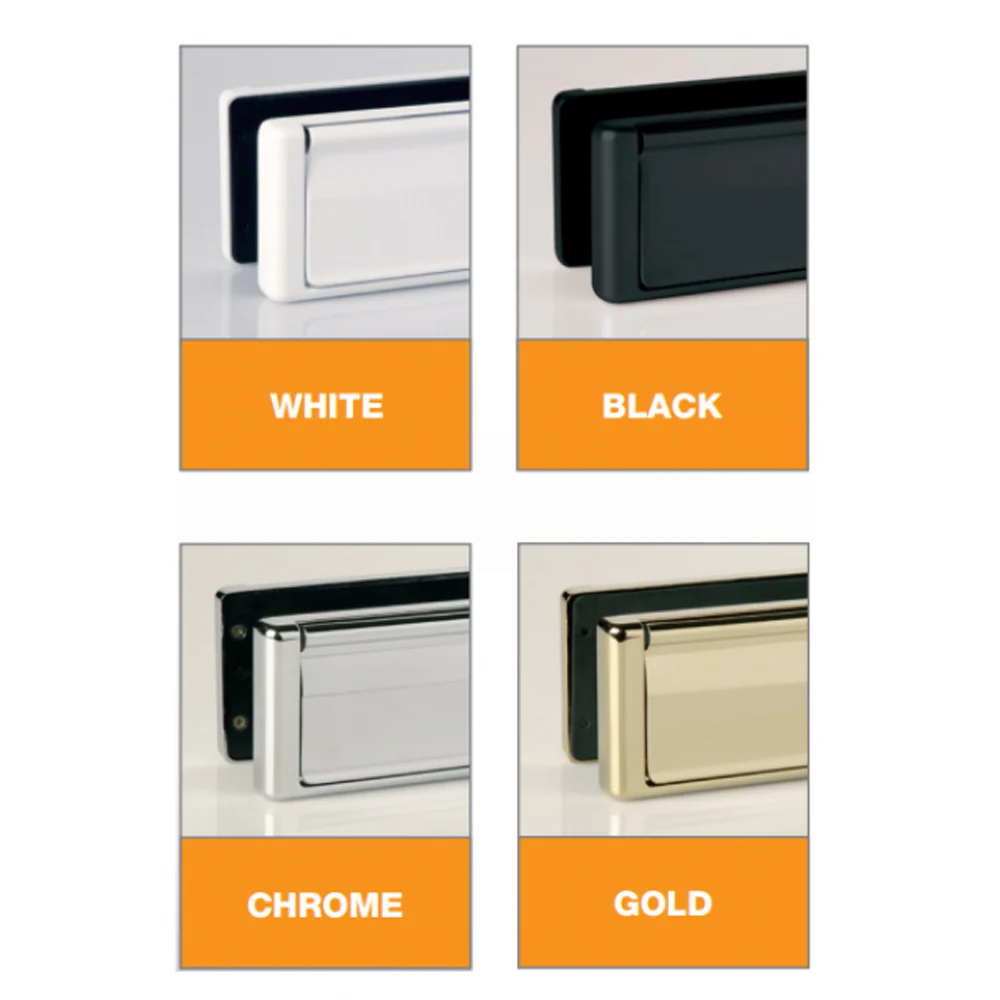

• Available in White, Black, Gold, Chrome , Satin Chrome and Flint
• Contains external weatherseal and internal draught seal
• All supplied with 2 fixing screws
• Internal nylon brush seal to reduce air filtration

Technical Information

Assessment Data

Performance: Tested (flap) to 50,000 operations
Aperture size conforms to requirements of BS EN 13724:2002

Material Specifications

Flap: Zinc BS1004A
Body: Zinc BS1004A

Coating Specification

Polyester Powder Coated: White & Black, 60 microns minimum coating thickness
PVD Coating: Multiple layer plating process
